Products Description

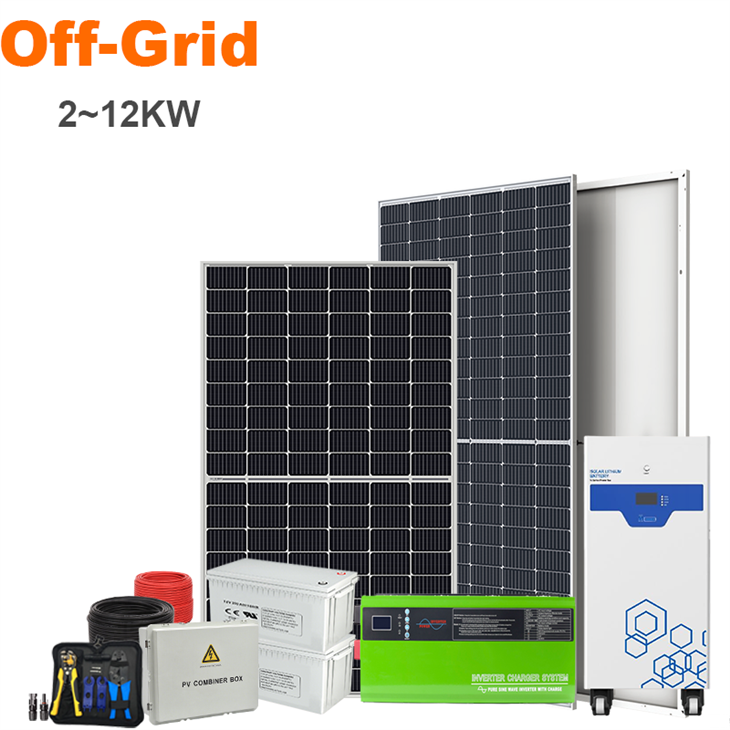

Shinefar Solar's 3kW Home Off-Grid PV Power System delivers reliable, self-sustaining solar energy for remote homes, cabins, or eco-living. It captures sunlight via efficient panels, converts it to clean AC power using our pure sine wave low-frequency off-grid inverter-providing distortion-free output (<3% THD) for sensitive devices like lights, fridges, and TVs-while integrating batteries for 1–2 days of autonomy.

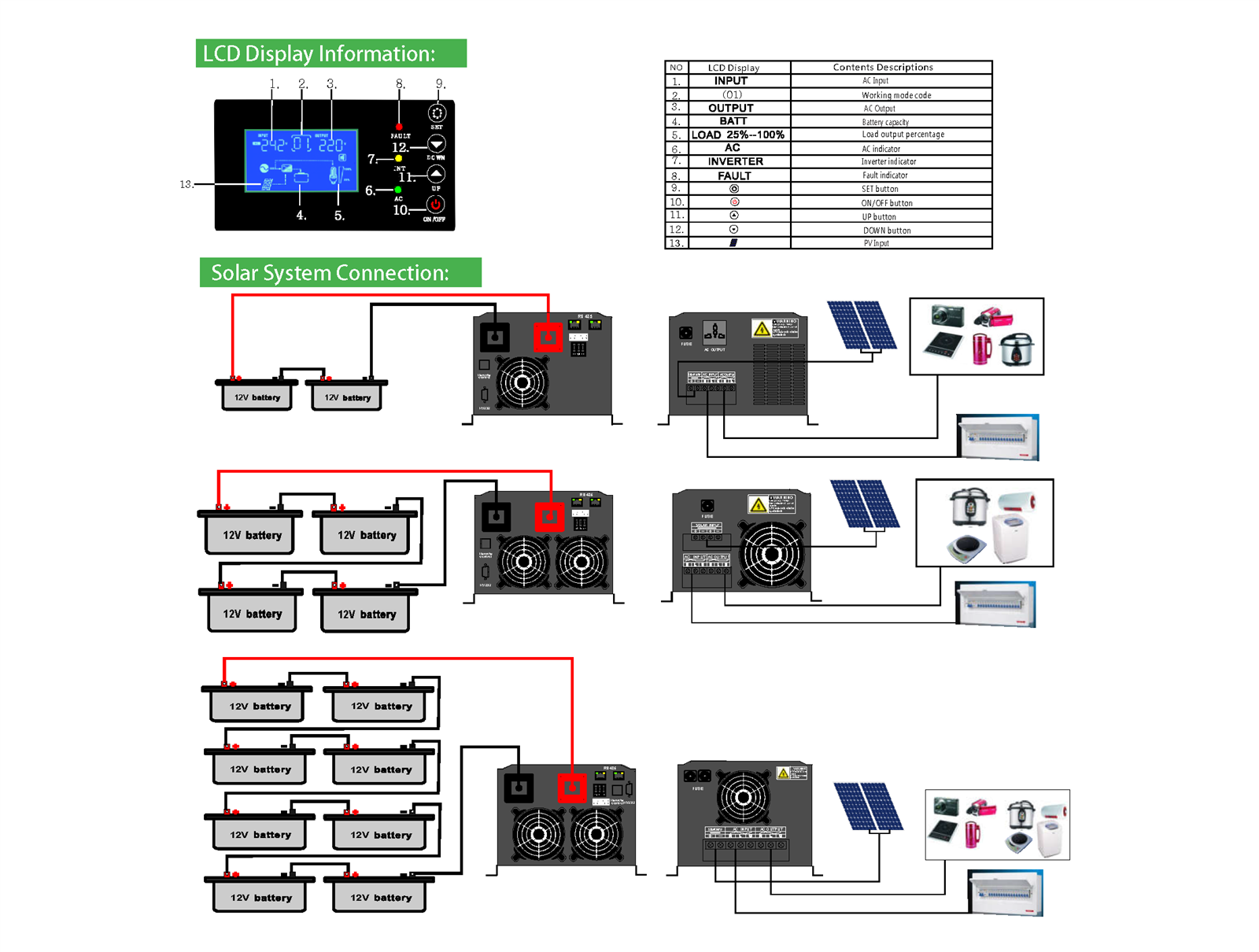

System Block Diagram
System Configuration
| Model |
SF3K POFSP |
SF5K- POFSP |
SF8K- POFSP |
SF10K- POFSP |
SF12K- POFSP |
| PV module 580W | 4 | 6 | 6 | 10 | 10 |
| Off Grid Inverter | FMK3K | FMK5K | FMK8K | FMK10K | FMK12K |
| Communication |
WIFI |
||||
| Mounting System | 1 set | 1 set | 1 set | 1 set | 1 set |
| PV cable 4mm² | 100M | 150M | 150M | 200M | 200M |
| PV connector | 10 kit | 10 kit | 10 kit | 10 kit | 10 kit |
| PV combine box | 1 set | 1 set | 1 set | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | |||||
System Components
Shinefar Solar PV module
Technology: Utilizing MBB half cell N-type TOPCon
Pmax: 580W
Vmp: 42.91V
Imp: 13.52A
Voc: 50.80V
Isc: 14.55A
Dimensions: 2278×1134×30mm Weight: 26.5kg
Shinefar Low Frequency Off-grid Inverter
Pure sine wave output
With UPS automatic switching function, grid power charging function.
WiFi/RS485/AGS remote monitoring communication
Shinefar Solar PV Combine Box
Cross Section: 4mm², 6mm² Optional
Rated Voltage: DC500V/1000VDC/1500V(TUV)
Rated Current: 15A or higher
surge protection
Mounting Structure
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system
Solar GEL Battery(option-1)
GEL Battery 12V200AH
High quality and stable
Cost-effective
Solar Lithium Battery(option-2)
Long service life over 8 years
Modular desing,small size,and light weight with one key switch machine,the operation is more convenient. Suitable for long-term charge and discharge cycles. Adopt multi-evel energy consumption management
Our Advantages
WHY CHOOSE US?
Exhibitions
Canton Fair
Canton Fair
Finland Expo
InterSolar Europe
InterSolar Europe
InterSolar South America
Poland Expo
Shanghai SNEC
Project case
successful cases
Choose the plan that suits you best.
Austrian Park Project
German residential projects
Vietnam residential project
Italian residential projects
FAQ
Are you a factory or a trader?
+
-
We are a manufacturer of solar panel, and we can also provide solutions for complete solar systems.
Can I charge the battery with grid or generator power?
+
-
Yes, inverter support both grid or generator power input.
Do you provide installation services for the solar system?
+
-
Yes, absolutely!
We offer professional installation services through our own certified and experienced teams, which are strategically located in various countries. We are committed to providing a seamless, start-to-finish solution for your solar project.
For specific details regarding availability, scheduling, and pricing in your exact location, please contact our sales team. They will be delighted to provide you with a customized proposal and guide you through our comprehensive, one-stop service for your photovoltaic installation.
