General Features
● Max. PV voltage up to 1500V
● Max. 28 DC inputs
● IP54 outdoor protection
● Modular design for Easy maintenance
● Max. DC/AC ratio up to 1.5
● Full power output under 50℃
● AGC/AVC,LVRT/HVRT/FRT function
● SVG function at night
Technical Parameters
|

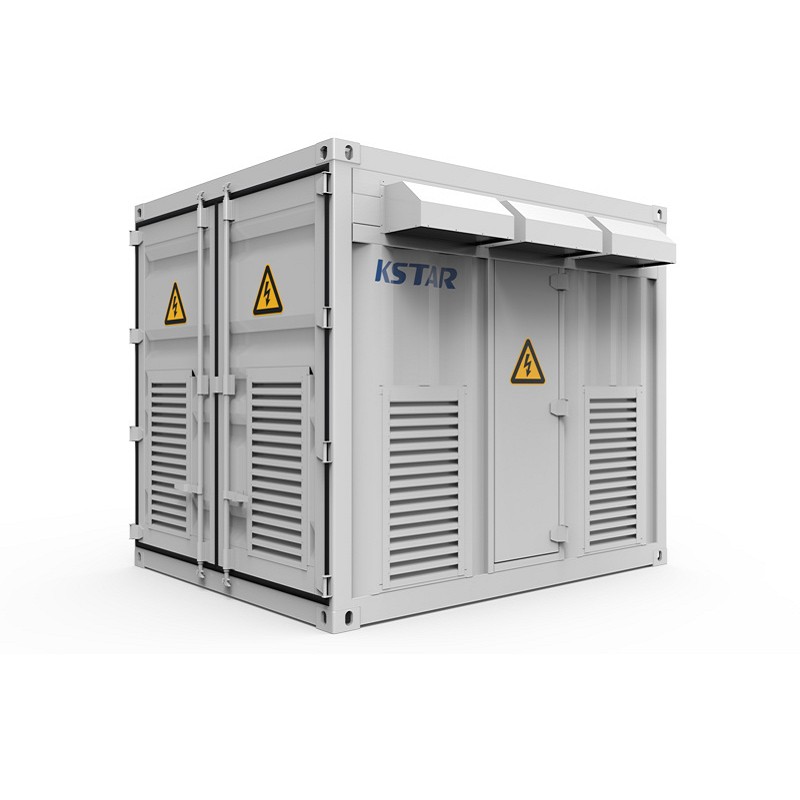

Model |
GSM3125C |
GSM3400C |
|
Input(DC) |
||
|
Max. DC voltage |
1500Vdc |
|
|
MPPT voltage range |
920~1300Vdc |
920~1300Vdc |
|
Number of MPPT |
2 |
2 |
|
Max. input current |
4080A 4080A |
|
|
Output(AC) |
||
|
Rated output power |
3125KW |
3400KW |
|
Rated output voltage |
630Vac |
630 Vac |
|
AC voltage range |
504V~693V (adjustable) |
|
|
Grid frequency range |
50 / 60（±4.5Hz）（adjustable） |
|
|
Rated grid frequency |
50/60Hz |
50/60Hz |
|
Grid connection system |
3W+PE |
3W+PE |
|
Power factor (cosФ) |
1 ( 0.8leading – 0.8 lagging) (adjustable) |
|
|
THDi |
＜3% |
|
|
Efficiency |
||
|
Max. efficiency |
99.0% |
|
|
Euro efficiency |
98.7% |
|
|
MPPT efficiency |
＞99% |
|
|
Cooling type |
Forced air cooling |
|
|
Communication interface |
RS485 |
|
