Products Description

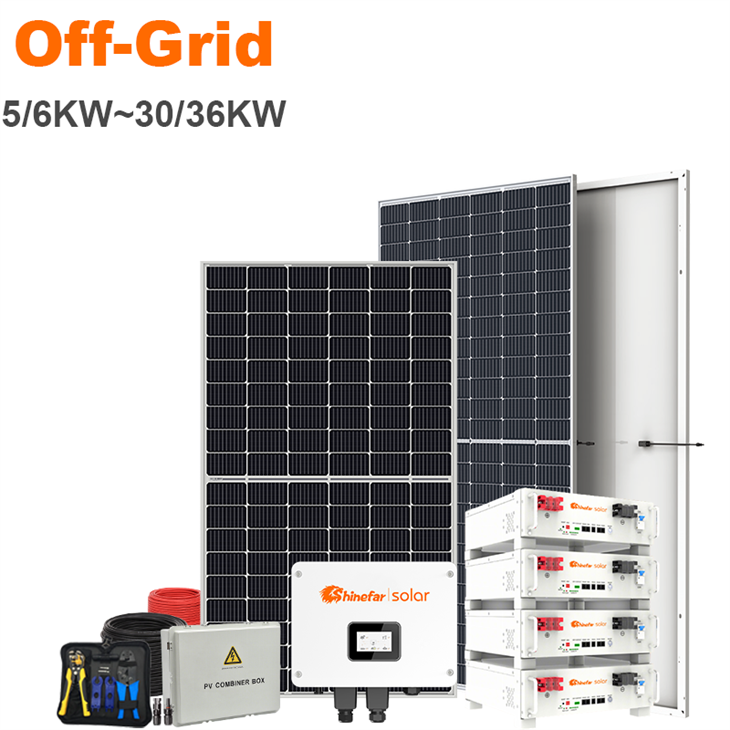

Shinefar Solar 5/6kW off-grid solar system is built around an inverter capable of parallel connection with up to five additional units. This modular design allows the system's total capacity to be seamlessly expanded from a single unit to a powerful 30kW or 36kW array, offering a future-proof power solution that grows with your energy demands.

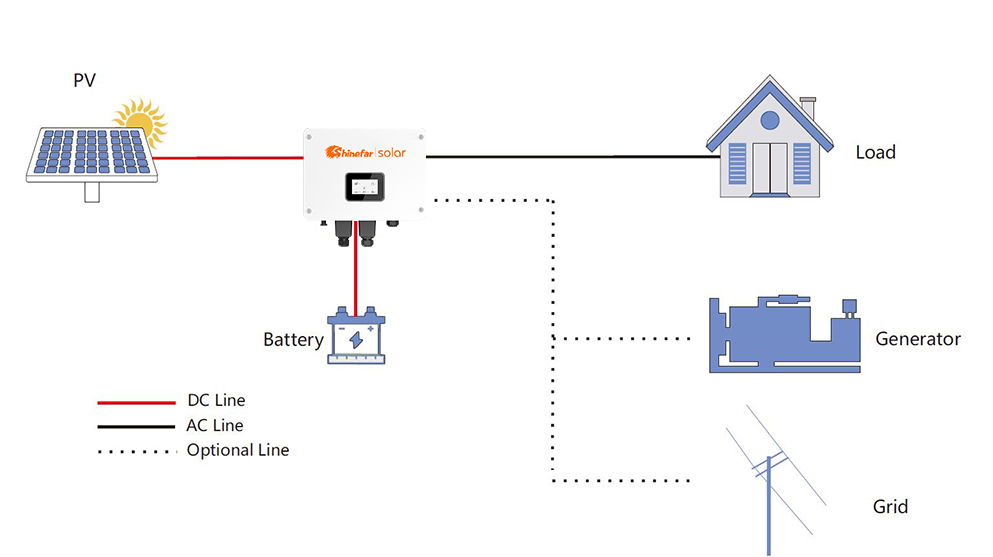

System Block Diagram
System Configuration
| Model | SF5K-OFSP | SF6K-OFSP |
| PV module 580W | 9 pcs | 9 pcs |
| Off-Grid Inverter | 05KL1D | 06KL1D |
| Wi-Fi Module |
|
|
| Mounting System | 1 set | 1 set |
| PV cable 4mm² | 100M | 100M |
| PV connector | 5 kit | 5 kit |
| PV combine box | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | ||
System Components
Shinefar Solar PV module
Technology: Utilizing MBB half cell N-type TOPCon
Pmax: 580W
Vmp: 42.91V
Imp: 13.52A
Voc: 50.80V
Isc: 14.55A
Dimensions: 2278×1134×30mm Weight: 26.5kg
Shinefar Off-Grid Inverter
- Support AC and DC power activation.
- Adopt LCD display, more convenient operation.
- Supports 6 pcs in parallel, and it can be extended to 30/36KW.
- Max.1.5x DC overmatching.
- Optional WIFl or GPRS for remote monitoring.
- Support three-phase function.
Shinefar Solar Lithium Battery
1. Compact size saves space
2. Easy installation, adaptable to any mounting angle
3. Excellent compatibility, compatible with all major switching power supplies and UPSs
4. The BMS can withstand high inrush currents, increasing system reliability
5. Electrical storage cells provide a longer lifespan
6. Supports parallel operation of multiple units
Shinefar Solar PV Combine Box
Cross Section: 4mm², 6mm² Optional
Rated Voltage: DC500V/1000VDC/1500V(TUV)
Rated Current: 15A or higher
surge protection
Mounting Structure
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system

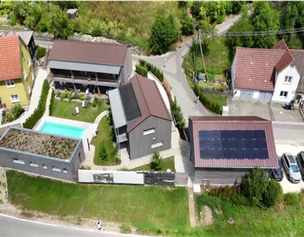

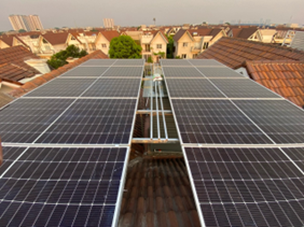

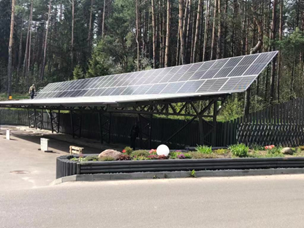

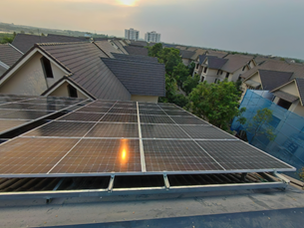

Project case
successful cases
Choose the plan that suits you best.
Austrian Park Project
German residential projects
Vietnam residential project
Italian residential projects
Our Advantages
WHY CHOOSE US?
Exhibitions
Canton Fair
Canton Fair
Finland Expo
InterSolar Europe
InterSolar Europe
InterSolar South America
Poland Expo
Shanghai SNEC
FAQ
How can I increase the system's power output?
+
-
The system is highly scalable. You can add more inverters in parallel.
How many inverters can I connect together?
+
-
You can connect a maximum of six identical inverters in parallel.
Do I need batteries for this system?
+
-
Yes, this is an off-grid system and requires a battery bank to store energy for use when the sun isn't shining.
