440^(W)

Component power

22.89^<%>

Component efficiency

15^(year)

Product quality assurance

30^(year)

Efficiency warranty

Core Advantages

TOPCON Cells

TOPCon technology,higher power, overcomes LID and PID degradation.

Smart Soldering

Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.

Bifacial Energy Yield

Additional power generation from the backside of bifacial modules increases the overall energy yield, which has been verified by customers and third-party testing organizations.

Electrically Compatible

Lower Operating current,Good for distributed generation applications; Matches with various inverters and optimizers; Avoids wiring loss.

Smart Module Packaging and Logistics

Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.

Power Warranty

1st year degradation ≤2.0%, linear degradation ≤0.4%/year

Mechanical Parameters

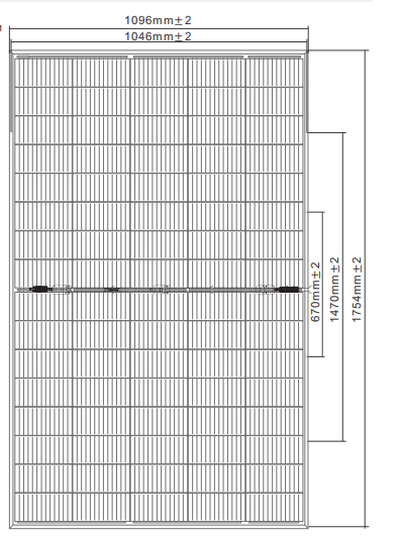

Dimensions of Module

1754x1096x30mm

Weight

21.0kg

Packing

37pcs/Pallet,1001pcs/40hq

Front Glass

High Transparency Solar Glass 3.2mm

Back Glass

Transparent or Transparent Grid

Frame

Anodized Aluminum Alloy & Custom Color Accepted

J-Box

IP68 Rated

Cable

4.0mm², 300mm

Bypass Diodes

3pcs

Wind/ Snow Load

2400Pa/5400Pa

Connector

MC4 Compatible

Electrical Performance Parameters (STC Test)

Module Type	SF-M21/80425	SF-M21/80430	SF-M21/80435	SF-M21/80440
Maximum Power (Pmax) [W]	425	430	435	440
Maximum Power Voltage (Vmp)[M]	24.09	24.29	24.49	24.69
Maximum Power Current (lmp) [A]	17.64	17.70	17.76	17.82
Open Circuit Voltage (Voc)[M]	28.67	28.87	29.07	29.27
Short Circuit Current (Isc)[A]	18.81	18.88	18.95	19.01
Module Eficiency[%]	22.11	22.37	22.63	22.89
Celli Type[mm]	Mono 210X 105,80 cells
Operational Temperature['C]	-40~+85°C
Maximum System Voltage	1500V DC
Max Series Fuse Rating	30A

Electrical Performance Parameters (NOTC Test)

Module Type	SF-M21/80425	SF-M21/80430	SF-M21/80435	SF-M21/80440
Maximum Power (Pmax) [W]	321.13	324.91	328.69	332.46
Maximum Power Voltage (Vmp)[M]	22.58	22.78	22.98	23.18
Maximum Power Current (lmp) [A]	14.22	14.26	14.30	14.34
Open Circuit Voltage (Voc)[M]	26.91	27.11	27.32	27.52
Short Circuit Current (Isc)[A]	15.14	15.19	15.23	15.28
Module Eficiency[%]	22.11	22.37	22.63	22.89
Celli Type[mm]	Mono 210X 105,80 cells
Operational Temperature['C]	-40~+85°C
Maximum System Voltage	1500V DC
Max Series Fuse Rating	30A

Electrical Characteristics With 10% Solar Irradiation Ratio

Module Type	SF-M21/80425	SF-M21/80430	SF-M21/80435	SF-M21/80440
454.75	460.10	465.45	470.80
Maximum Power Voltage (Vmp)[M]	24.09	24.29	24.49	24.69
Maximum Power Current (lmp) [A]	18.88	18.94	19.01	19.07
Open Circuit Voltage (Voc)[M]	28.67	28.87	29.07	29.27
Short Circuit Current (Isc)[A]	20.13	20.20	20.27	20.34
Irradiation Ratio(rear/front)	10%

Load Capacity

Frontal maximum static load (e.g., snow, wind)

5400Pa

Maximum static load on back (e.g. wind)

2400Pa

Pass the hail test

Diameter 25mm, impact speed 23m/s

Temperature Ratings

Nominal Operating Cell Temperature (NOCT)

45±2°C

Temperature Coefficient of Isc

+0.05%/°C

Temperature Cofficient of Voc

-0.23%/°C

Temperature Coefficient of Pmax

-0.30%/°C
