465^(W)

Component power

21.93^<%>

Component efficiency

15^(year)

Product quality assurance

25^(year)

Efficiency warranty

Core Advantages

Duplex Power Generation

The back of the stack module generates electricity, the comprehensive power generation capacity is higher, and the power generation gain is verified by customers and third parties.

Smart Soldering

Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.

Half-Cell Modules

The power of half-cell module increases, and the hot spot temperature reduces because of lower working current.

Electrically Compatible

Lower Operating current,Good for distributed generation applications; Matches with various inverters and optimizers; Avoids wiring loss.

Smart Module Packaging and Logistics

Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.

Power Warranty

1st year degradation ≤2.0%, linear degradation ≤0.45%/year

Mechanical Parameters

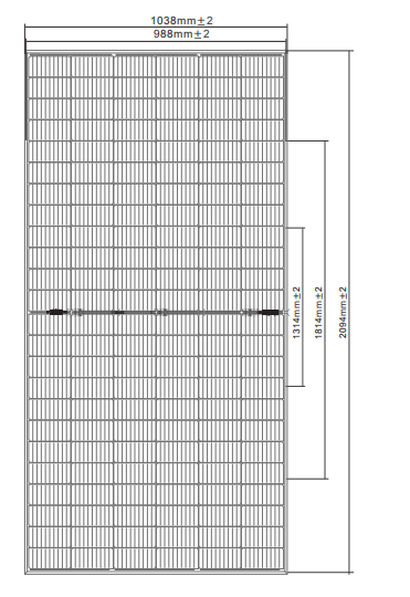

Dimensions of Module

2094x1038x35mm

Weight

22.7kg

Packing

31/pallet,748/40hq

Front Glass

High transparency solar glass 3.2mm

Back Glass

Transparent or Transparent Grid

Frame

Anodized Aluminum Alloy & Custom Color Accepted

J-Box

IP68 Rated

Cable

4.0mm², 300mm

Bypass Diodes

3pcs

Wind/ Snow Load

2400Pa/5400Pa

Connector

MC4 Compatible

Electrical Performance Parameters (STC Test)

Module Type	SF-M16/144450	SF-M16/144455	SF-M16/144460	SF-M16/144465
Maximum Power (Pmax) [W]	450	455	460	465
Maximum Power Voltage (Vmp)[M]	41.40	41.60	41.80	42.00
Maximum Power Current (lmp) [A]	10.87	10.94	11.00	11.07
Open Circuit Voltage (Voc)[M]	49.98	50.18	50.38	50.58
Short Circuit Current (Isc)[A]	11.33	11.39	11.44	11.49
Module Eficiency[%]	20.70	20.93	21.16	21.39
Celli Type[mm]	Mono 166x83,144 cells
Operational Temperature['C]	-40~+85°C
Maximum System Voltage	1500V DC
Max Series Fuse Rating	20A

Electrical Performance Parameters (NOTC Test)

Module Type	SF-M16/144450	SF-M16/144455	SF-M16/144460	SF-M16/144465
Maximum Power (Pmax) [W]	333.90	337.61	341.32	345.03
Maximum Power Voltage (Vmp)[M]	38.88	39.07	39.26	39.45
Maximum Power Current (lmp) [A]	8.59	8.64	8.69	8.75
Open Circuit Voltage (Voc)[M]	46.82	47.02	47.22	47.42
Short Circuit Current (Isc)[A]	8.97	9.02	9.06	9.10
Module Eficiency[%]	20.70	20.93	21.16	21.39
Celli Type[mm]	Mono 166x83,144 cells
Operational Temperature['C]	-40~+85°C
Maximum System Voltage	1500V DC
Max Series Fuse Rating	20A

Electrical Characteristics With 10% Solar Irradiation Ratio

Module Type	SF-M16/144450	SF-M16/144455	SF-M16/144460	SF-M16/144465
Total Equivalent power(Pmax)[Wp]	482	487	492	498
Maximum Power Voltage (Vmp)[M]	41.40	41.60	41.80	42.00
Maximum Power Current (lmp) [A]	11.63	11.70	11.78	11.85
Open Circuit Voltage (Voc)[M]	49.98	50.18	50.38	50.58
Short Circuit Current (Isc)[A]	12.12	12.18	12.24	12.30
Irradiation Ratio(rear/front)	10%

Load Capacity

Frontal maximum static load (e.g., snow, wind)

5400Pa

Maximum static load on back (e.g. wind)

2400Pa

Pass the hail test

Diameter 25mm, impact speed 23m/s

Temperature Ratings

Nominal Operating Cell Temperature (NOCT)

45±2°C

Temperature Coefficient of Isc

+0.06%/°C

Temperature Cofficient of Voc

-0.30%/°C

Temperature Coefficient of Pmax

-0.39%/°C
