380^(W)

Component power

20.86^<%>

Component efficiency

15^(year)

Product quality assurance

30^(year)

Efficiency warranty

Core Advantages

Smart Soldering

Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.

Smart Module Packaging and Logistics

Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.

Half-Cell Modules

The power of half-cell module increases, and the hot spot temperature reduces because of lower working current.

Multi-busbar Design

Our multi-busbar design further improves current collection capabilities.

Power Warranty

1st year degradation ≤2.0%, linear degradation ≤0.45%/year

Electrically Compatible

Lower Operating current,Good for distributed generation applications; Matches with various inverters and optimizers; Avoids wiring loss.

Bifacial Energy Yield

Additional power generation from the backside of bifacial modules increases the overall energy yield, which has been verified by customers and third-party testing organizations.

TOPCON Cells

TOPCon technology,higher power, overcomes LID and PID degradation.

Mechanical Parameters

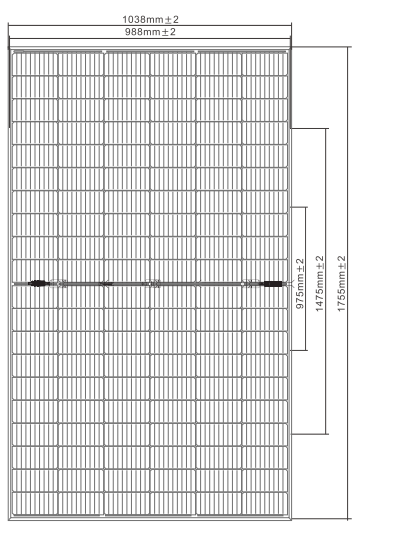

Dimensions of Module

1755x1038x30mm

Weight

24.0kg

Packing

37pcs/Pallet,1053pcs/40hq

Glass

High Transparency Solar Glass 2.0mm

Backsheet

Heat Strengthened Glass 2.0mm

Frame

Anodized Aluminum Alloy & Custom Color Accepted

J-Box

IP68 Rated

Cable

4.0mm², 300mm

Bypass Diodes

3pcs

Wind/ Snow Load

2400Pa/5400Pa

Connector

MC4 Compatible

Electrical Performance Parameters (STC Test)

Module Type	SF-M16/G120365	SF-M16/G120370	SF-M16/G120375	SF-M16/G120380
Maximum Power (Pmax) [W]	365	370	375	380
Maximum Power Voltage (Vmp)[M]	34.13	34.33	34.53	34.73
Maximum Power Current (lmp) [A]	10.69	10.78	10.86	10.94
Open Circuit Voltage (Voc)[M]	41.17	41.37	41.57	41.77
Short Circuit Current (Isc)[A]	11.23	11.31	11.38	11.45
Module Eficiency[%]	20.04	20.31	20.59	20.86
Celli Type[mm]	Mono 166x83,120 cells
Operational Temperature['C]	-40~+85°C
Maximum System Voltage	1500V DC
Max Series Fuse Rating	20A

Electrical Performance Parameters (NOTC Test)

Module Type	SF-M16/G120365	SF-M16/G120370	SF-M16/G120375	SF-M16/G120380
Maximum Power (Pmax) [W]	270.83	274.54	278.25	281.96
Maximum Power Voltage (Vmp)[M]	31.95	32.14	32.33	32.52
Maximum Power Current (lmp) [A]	8.48	8.54	8.61	8.67
Open Circuit Voltage (Voc)[M]	38.55	38.73	38.92	39.11
Short Circuit Current (Isc)[A]	8.90	8.96	9.02	9.07
Module Eficiency[%]	20.04	20.31	20.59	20.86
Celli Type[mm]	Mono 166x83,120 cells
Operational Temperature['C]	-40~+85°C
Maximum System Voltage	1500V DC
Max Series Fuse Rating	20A

Electrical Characteristics With 10% Solar Irradiation Ratio

Module Type	SF-M16/G120365	SF-M16/G120370	SF-M16/G120375	SF-M16/G120380
Total Equivalent power(Pmax)[Wp]	402	407	413	418
Maximum Power Voltage (Vmp)[M]	34.13	34.33	34.53	34.73
Maximum Power Current (lmp) [A]	11.76	11.86	11.95	12.04
Open Circuit Voltage (Voc)[M]	41.17	41.37	41.57	41.77
Short Circuit Current (Isc)[A]	12.35	12.44	12.52	12.59
Irradiation Ratio(rear/front)	10%

Load Capacity

Frontal maximum static load (e.g., snow, wind)

5400Pa

Maximum static load on back (e.g. wind)

2400Pa

Pass the hail test

Diameter 25mm, impact speed 23m/s

Temperature Coefficient (STC test)

Temperature Coefficient of Isc

+0.06%/°C

Temperature Cofficient of Voc

-0.30%/°C

Temperature Coefficient of Pmax

-0.39%/°C

Hot Tags: sf-m16 g120(365w-380w) two sided solar panels, China sf-m16 g120(365w-380w) two sided solar panels manufacturers, suppliers, factory, Mono PERC And Bifacial Modules, Mono PERC Bifacial Panel, Prism Bifacial Solar Panels, Two Sided Solar Panels, Dual Sided Solar Panels, Bifacial Modules

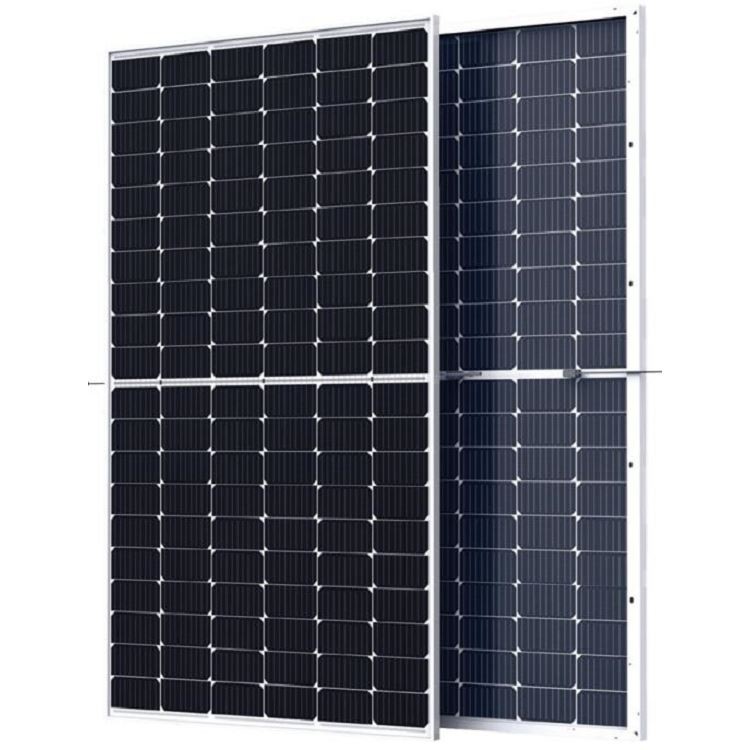

SF-M16 G120(365W-380W) Two Sided Solar Panels
