General Features
● Max. PV voltage up to 1500V
● Max.56 DC inputs
● Modular design for Easy maintenance
● Max. efficiency up to 99%
● Full power output under 50℃
● AGC/AVC
● SVG function at night
● IP54 outdoor protection
● LVRT/HVRT/FRT function
Technical Parameters
|

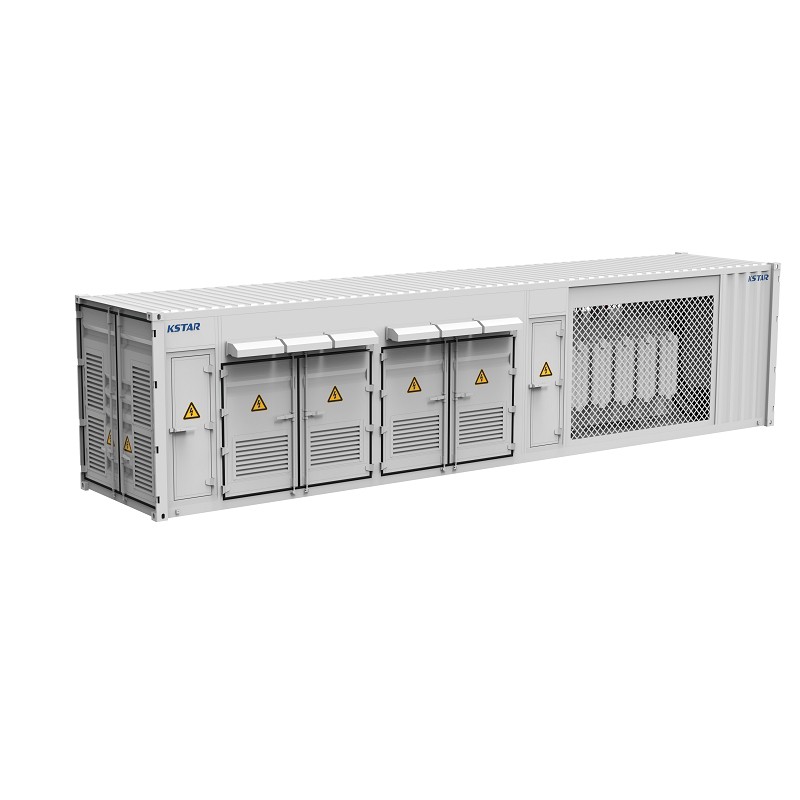

Model |
GSM6250C-MV |
GSM6800C-MV |
|
Input(DC) |
||
|
Max. DC voltage |
1500Vdc |
|
|
MPPT voltage range |
900~1300Vdc |
|
|
Number of DC input |
56 |
|
|
Number of MPPT |
4 |
|
|
Max. input current |
8160A |
|
|
Output(AC) |
||
|
Rated output power |
6250KW |
6800KW |
|
Max output power |
7200kW(25℃) |
|
|
AC output voltage |
10~35kV |
|
|
Grid frequency range |
50 / 60Hz（±5Hz）（adjustable） |
|
|
LV/MV voltage |
0.63kV / 10~35kV |
|
|
Power factor (cosФ) |
1 ( 0.8leading – 0.8 lagging) (adjustable) |
|
|
THDi |
＜3% |
|
|
System Features |
||
|
Inverter Max. efficiency |
99.0% |
|
|
Inverter Euro efficiency |
98.7% |
|
|
MPPT efficiency |
＞99% |
|
|
Cooling type |
Forced air cooling |
|
|
Communication interface |
RS485, External Ethernet (Optional) |
|
|
MV transformer vector |
Dy11y11 |
|
|
MV transformer type |
Oil/Dry |
|
|
MV switchgear protection |
Circuit Breaker |
|
