General Features
● Max. PV voltage up to 1500V
● Max.24 DC inputs
● Modular design for Easy maintenance
● Max. DC/AC ratio up to 1.5
● Full power output under 50℃
● AGC/AVC
● SVG function at night
● IP54 outdoor protection
● LVRT/HVRT/FRT function
Technical Parameters
|
Model |

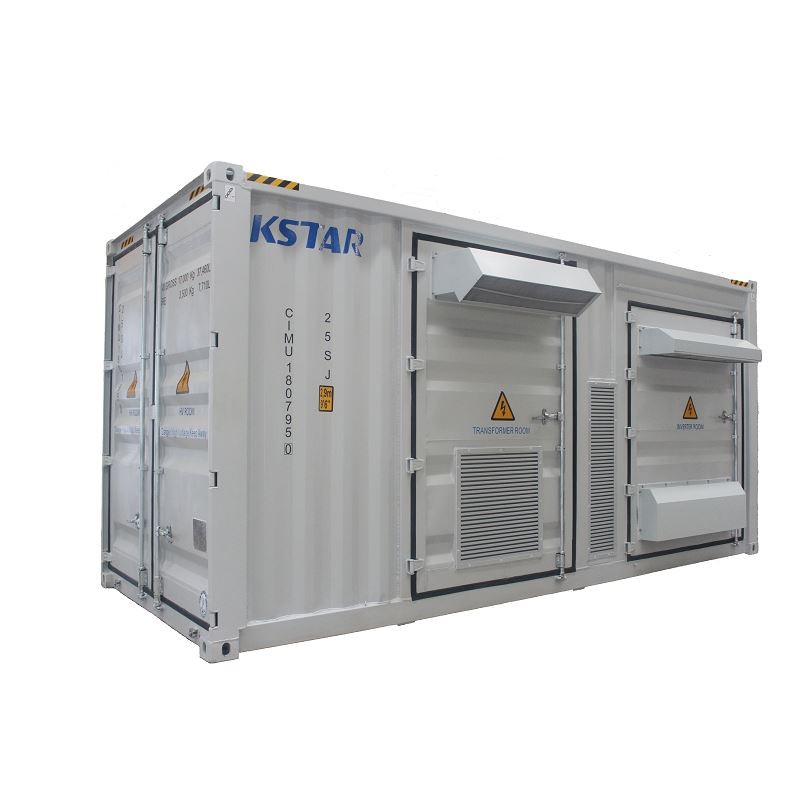

GSM2500C-MV |
|
Input(DC) |
|
|
Max. DC input voltage |
1500Vdc |
|
MPPT voltage range |
800~1300Vdc |
|
Number of DC input |
20~24 |
|
Max. input current |
3500A |
|
Output(AC) |
|
|
Rated output power |
2500KW |
|
Max. output power |
2750KW |
|
AC output voltage |
10~35kV |
|
Grid frequency range |
50 / 60Hz(±4.5Hz) (adjustable) |
|
LV/MV voltage |
0.55kV / 10~35kV |
|
Power factor (cosФ) |
1 ( 0.9 leading – 0.9 lagging) (adjustable) |
|
THDI |
<3% |
|
System features |
|
|
Inverter Max. efficiency |
99% |
|
Inverter Euro efficiency |
98.7% |
|
MPPT efficiency |
>99% |
|
Cooling type |
Forced air cooling |
|
Communication interface |
RS485, External Ethernet (optional) |
