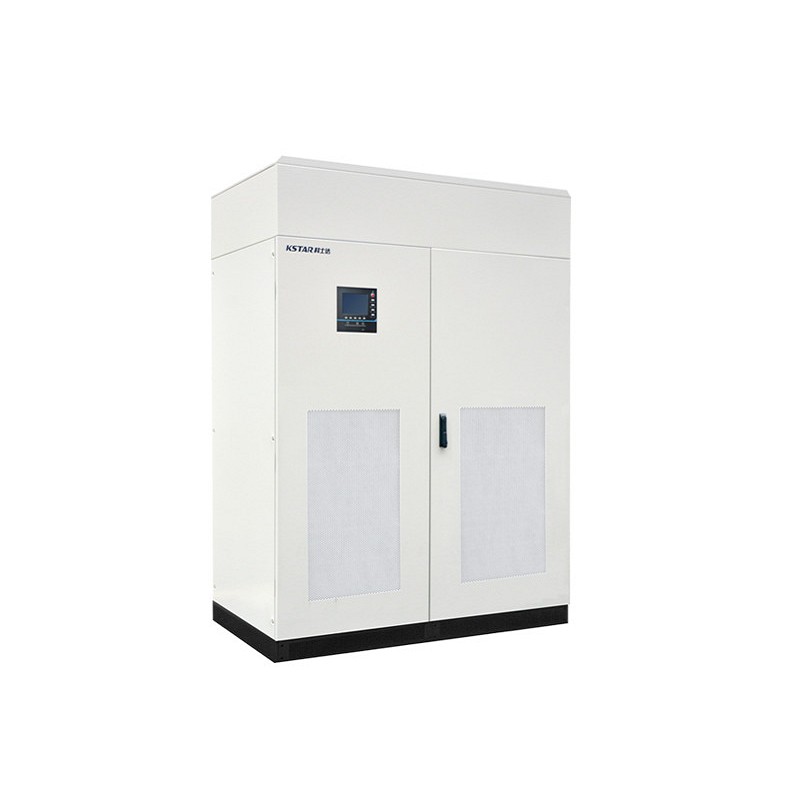

GSE Series 30~630KW

GSE series PCS is a centralized three-phase energy storage bidirectional converter specially designed for large-scale energy storage system. And isolated transformer can be integrated on the output side of the PCS if necessary. It can be used for peak shaving, frequency regulation and smooth the output of PV power plant. It has the characteristics of high reliability, high efficiency and low cost.

General Features

● Solution for energy independence

● Peak shaving, frequency regulation and smooth output

● Highly integrated design, high efficiency and energy saving

● Independent charging and discharging circuit

● Operating in either on-grid mode or off-grid mode

● Compatible with both lead-acid battery and Li-ion battery

Technical Parameters

Model	GSE0030T	GSE0050T	GSE0100T	GSE0150T	GSE0250T	GSE0500T	GSE0500	GSE0630
Input(DC)
Max. DC input power	33KW	55KW	110KW	165KW	275KW	550KW	550KW	690KW
Battery voltage range	400~850Vdc						500~850Vdc
Max. input current	66A	110A	220A	330A	550A	1100A	1100A	1200A
Output(AC)
Rated AC output power	30KW	50KW	100KW	150KW	250KW	500KW	500KW	630KW
Max. AC output power	33KVA	55KVA	110KVA	165KVA	275KVA	550KVA	550KVA	690KW
Rated output voltage	400Vac (With transformer)						315Vac (Transformerless)
AC output topology	3W+N+PE						3W+PE
Rated output current	43A	72A	144A	216A	361A	722A	916A	1155A
Max. output current	48A	80A	160A	240A	400A	800A	1007A	1212A
ON-grid mode
Grid voltage range	400Vac(-20%~﹢15%)						315Vac(-20%~﹢15%)
Grid frequency range	50 / 60Hz(±2Hz)(adjustable)
THDI	＜3%
Power factor (cosφ)	-1~+1
ZVRT	Yes
Off-grid mode
Output voltage accuracy	1%
Output voltage distortion	＜2%(linear load)
