Products Description

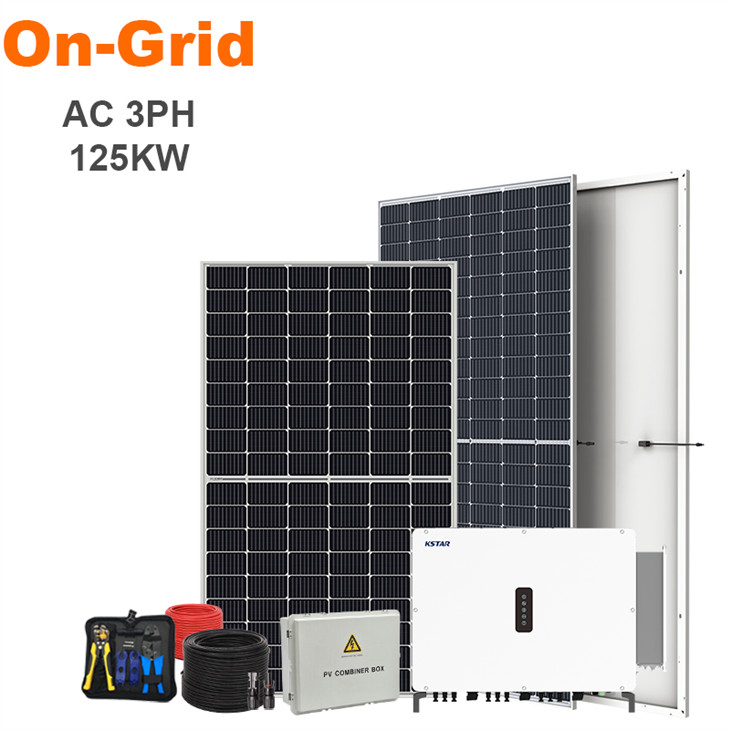

Shinefar Solar 125kW, 400V three-phase grid-tied photovoltaic (PV) system is a mid-scale solar energy solution designed specifically for commercial and industrial (C&I) facilities. This system generates electrical power by converting sunlight into electricity, offsetting a significant portion of the site's energy consumption from the utility grid, leading to substantial cost savings and enhanced sustainability.
System Configuration
| Model | SF125K-ONTP | DFC(Double Full Capacity) |
| PV module 580W | 250 pcs |
500 pcs |
| Hybrid Inverter | G125KT7 | G125KT7*2 |
| Communication |
RS485/PLC/WIFI/4G |
|
| Mounting System | 1 set | 1 set |
| PV cable 4mm² | 1000M | 2000M |
| PV connector | 80 kit | 160 kit |
| PV combine box | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | ||
System Components
Shinefar Solar PV module
Technology: Utilizing MBB half cell N-type TOPCon
Pmax: 580W
Vmp: 42.91V
Imp: 13.52A
Voc: 50.80V
Isc: 14.55A
Dimensions: 2278×1134×30mm Weight: 26.5kg
Shinefar 3Ph On-grid Inverter
·Max. PV Voltage up to 1100VType ll DC /AC SPD
·Compatible for Big Capacity PV Panel WiFi / 4G Plug Optional
·DC/AC Ratio up to 2
IP66 Protection
·High Efficiency up to 98.7% Smaller and Lighter
Shinefar Solar PV Combine Box
Cross Section: 4mm², 6mm² Optional
Rated Voltage: DC500V/1000VDC/1500V(TUV)
Rated Current: 15A or higher
surge protection
Mounting Structure
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system
Our Advantages
WHY CHOOSE US?
Exhibitions
Canton Fair
Canton Fair
Finland Expo
InterSolar Europe
InterSolar Europe
InterSolar South America
Poland Expo
Shanghai SNEC
Certificates
Global certifications
FAQ
Are you a factory or a trader?
+
-
We are a manufacturer of solar panel, and we can also provide solutions for complete solar systems.
Do I need batteries?
+
-
No! It uses the grid for balance-cheaper setup, but no power during outages.
Do you provide installation services for the solar system?
+
-
Yes, absolutely!
We offer professional installation services through our own certified and experienced teams, which are strategically located in various countries. We are committed to providing a seamless, start-to-finish solution for your solar project.
For specific details regarding availability, scheduling, and pricing in your exact location, please contact our sales team. They will be delighted to provide you with a customized proposal and guide you through our comprehensive, one-stop service for your photovoltaic installation.
