Products Description

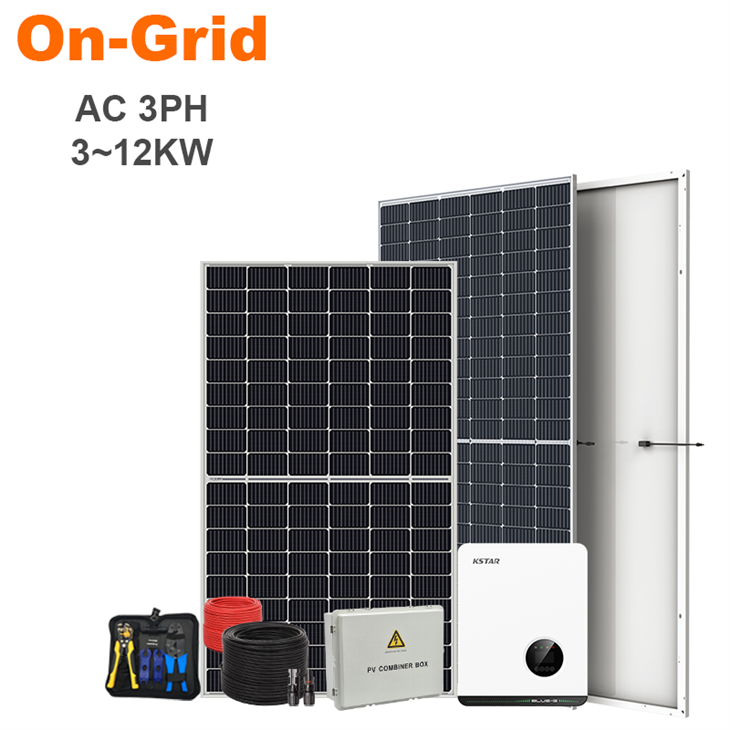

Shinefar Solar 10kW Three-Phase 400V Grid-Tied Solar System is an advanced, turnkey photovoltaic (PV) solution tailored for commercial, industrial, and residential applications. This integrated system converts sunlight into clean, grid-synchronized AC power, enabling seamless energy injection into three-phase 400V networks while reducing electricity costs and carbon emissions. Compliant with global standards like IEC 61727 and EN 50549, it features high-efficiency components for optimal performance, reliability, and ease of installation, supporting sustainable energy goals in diverse environments.

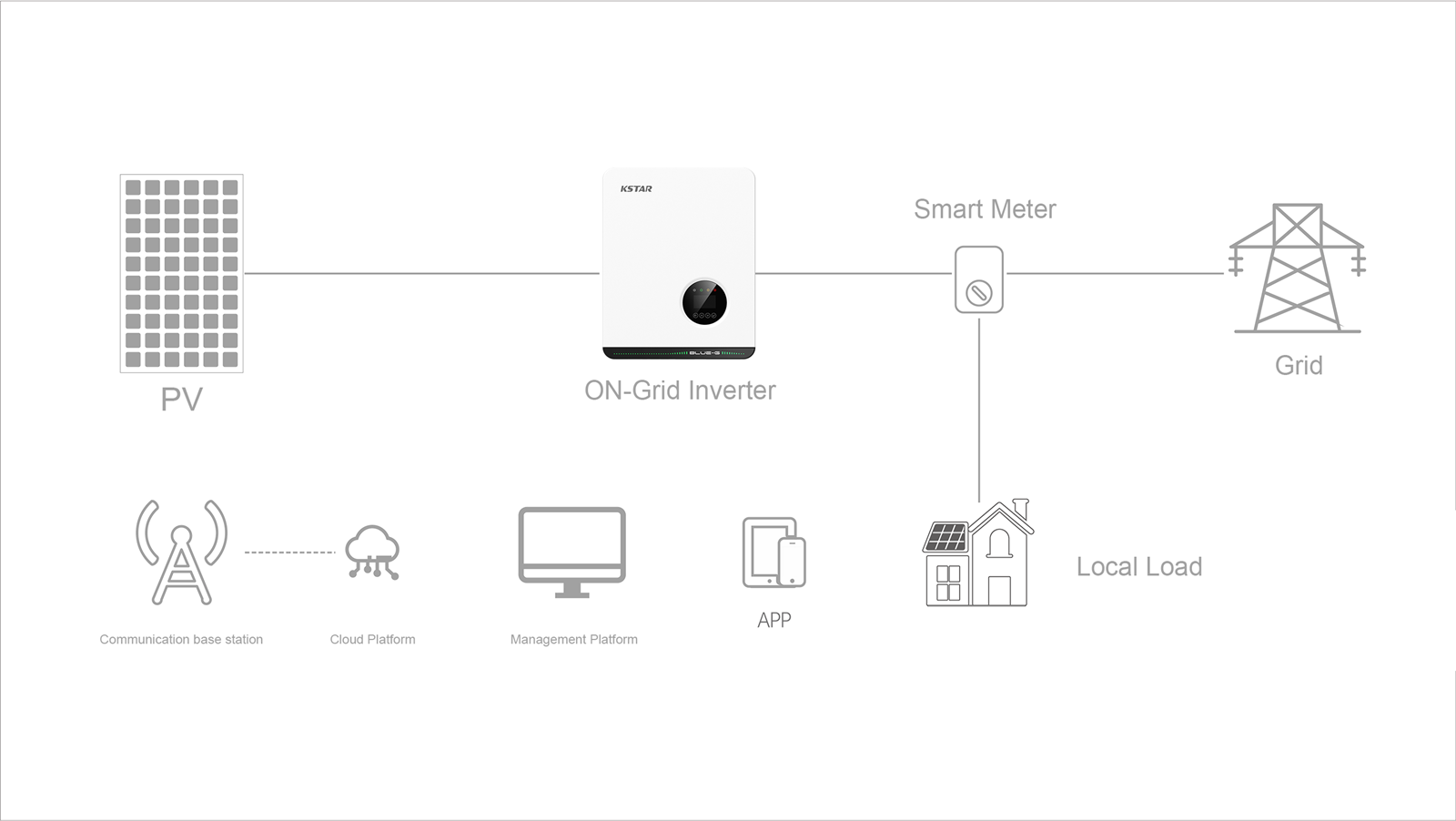

System Block Diagram
System Overview
Model info
Model NO
SF10K-ONTP
Rated Power
10KW
Output
AC400V, 3L+N, 50/60Hz
Certification
CE/TUV
Inverter
Tier-1 on-grid Inverter
PV module
Shinefar Solar N-type high efficiency PV module
Mounting Structure
Roof/Ground Customized
System Configuration
| Model | SF3K-ONTP | SF4K-ONTP | SF5K-ONTP |
| PV module 580W | 6 pcs | 7 pcs | 9 pcs |
| Hybrid Inverter | BlueE-3KT-M1 | BlueE-4KT-M1 | BlueE-5KT-M1 |
| Wi-Fi Module |
|
|
|
| Mounting System | 1 set | 1 set | 1 set |
| PV cable 4mm² | 50M | 100M | 150M |
| PV connector | 10 kit | 10 kit | 10 kit |
| PV combine box | 1 set | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | |||
| Model | SF8K-ONTP | SF10K-ONTP | SF12K-ONTP |
| PV module 580W | 14 pcs | 18 pcs | 21 pcs |
| Hybrid Inverter | BlueE-8KT-M1 | BlueE-10KT-M1 | BlueE-12KT-M1 |
| Wi-Fi Module |
|
|
|
| Mounting System | 1 set | 1 set | 1 set |
| PV cable 4mm² | 200M | 250M | 300M |
| PV connector | 10 kit | 10 kit | 10 kit |
| PV combine box | 1 set | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | |||
System Components
Shinefar Solar PV module
Technology: Utilizing MBB half cell N-type TOPCon
Pmax: 580W
Vmp: 42.91V
Imp: 13.52A
Voc: 50.80V
Isc: 14.55A
Dimensions: 2278×1134×30mm Weight: 26.5kg
Shinefar 3Ph On-grid Inverter
·Max. PV Voltage up to 1100VType ll DC /AC SPD
·Compatible for Big Capacity PV Panel WiFi / 4G Plug Optional
·DC/AC Ratio up to 2
IP66 Protection
·High Efficiency up to 98.6% Smaller and Lighter
Shinefar Solar PV Combine Box
Cross Section: 4mm², 6mm² Optional
Rated Voltage: DC500V/1000VDC/1500V(TUV)
Rated Current: 15A or higher
surge protection
Mounting Structure
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system
Our Advantages
WHY CHOOSE US?
Exhibitions
Canton Fair
Canton Fair
Finland Expo
InterSolar Europe
InterSolar Europe
InterSolar South America
Poland Expo
Shanghai SNEC
Certificates
Global certifications
FAQ
Are you a factory or a trader?
+
-
We are a manufacturer of solar panel, and we can also provide solutions for complete solar systems.
Do I need batteries?
+
-
No! It uses the grid for balance-cheaper setup, but no power during outages.
Differences Between Single-Phase and Three-Phase Grid-Tied Inverters
+
-
Single-phase: Ideal for residential/small setups. Three-phase: Best for factories/offices with high power needs, enabling scalability and grid services like reactive power control.
