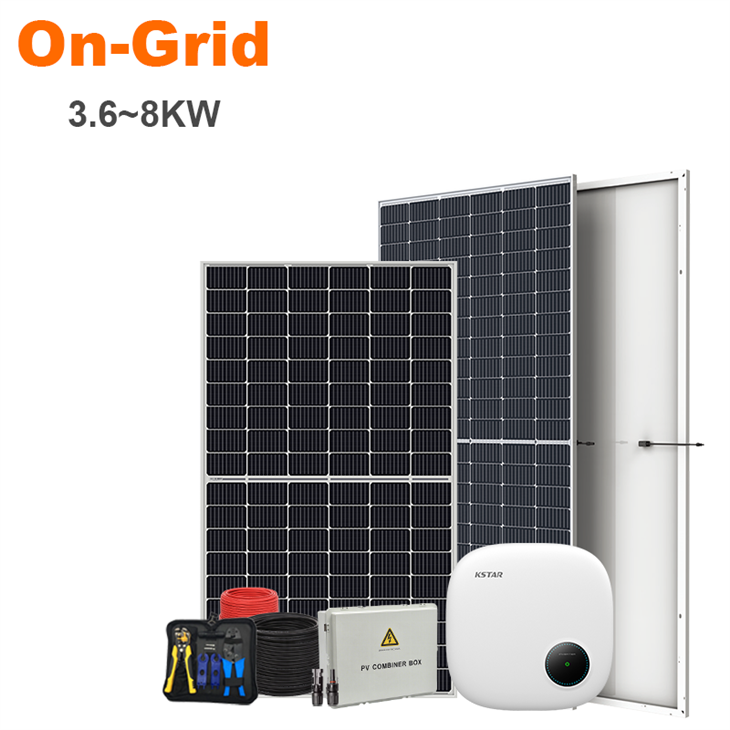

Products Description
A 5kW grid-tied PV system is a solar power setup that connects directly to your home's electrical grid. It's designed for small homes or apartments, generating about 20-25 kWh of electricity per day (depending on sunlight hours, like 4-5 hours in sunny areas).

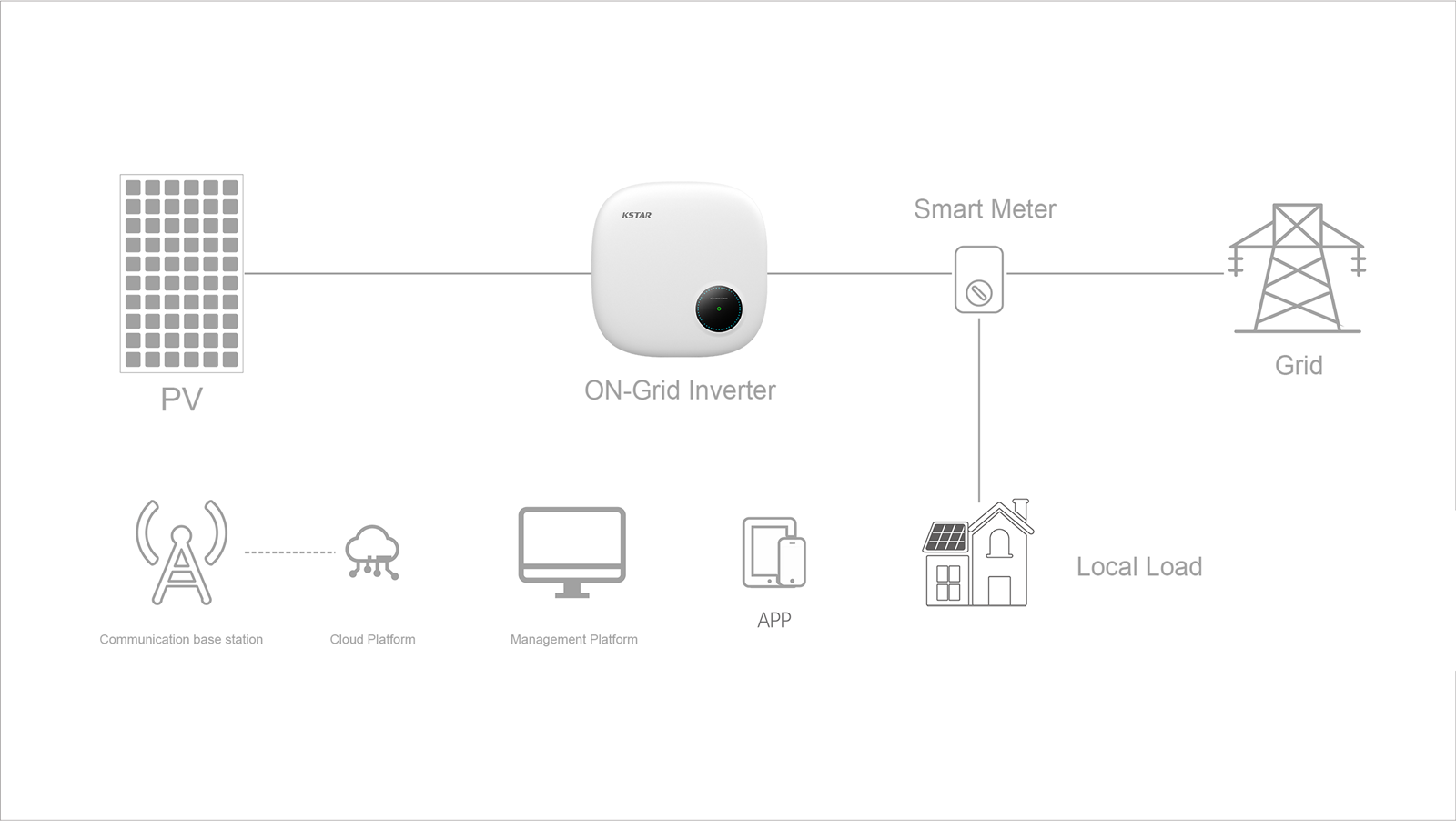

System Block Diagram
System Overview
Model info
Model NO
SF5K-ONSP
Rated Power
5KW
Output
AC230V, L-N, 50/60Hz
Certification
CE/TUV
Inverter
Tier-1 on-grid Inverter
PV module
Shinefar Solar N-type high efficiency PV module
Mounting Structure
Roof/Ground Customized
System Configuration
| Model | SF3.6K-ONSP | SF4K-ONSP | SF5K-ONSP |
| PV module 580W | 7 pcs | 8 pcs | 9 pcs |
| Hybrid Inverter | BlueE-G 3600D-M1 | BlueE-G 4000D-M1 | BlueE-G 5000D-M1 |
| Wi-Fi Module |
|
|
|
| Mounting System | 1 set | 1 set | 1 set |
| PV cable 4mm² | 50M | 100M | 150M |
| PV connector | 10 kit | 10 kit | 10 kit |
| PV combine box | 1 set | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | |||
| Model | SF6K-ONSP | SF8K-ONSP |
| PV module 580W | 11 pcs | 14 pcs |
| Hybrid Inverter | BlueE-G 6000D-M1 | BlueE-G 8000D-M1 |
| Wi-Fi Module |
|
|
| Mounting System | 1 set | 1 set |
| PV cable 4mm² | 200M | 250M |
| PV connector | 10 kit | 10 kit |
| PV combine box | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | ||
System Components
Shinefar Solar PV module
Technology: Utilizing MBB half cell N-type TOPCon
Pmax: 580W
Vmp: 42.91V
Imp: 13.52A
Voc: 50.80V
Isc: 14.55A
Dimensions: 2278×1134×30mm Weight: 26.5kg
Shinefar 3Ph Hybrid Inverter-LV
1. Max. PV Voltage up to 600VDC/AC ratio up to 1.5
2. Compatible for Big Capacity PV Panel WiFi/4G Plug Optional
3. Type ll DC SPD/Type III AC SPD IP65 Protection
4. High Efficiency up to 98.3%Smaller and Lighter
Shinefar Solar PV Combine Box
Cross Section: 4mm², 6mm² Optional
Rated Voltage: DC500V/1000VDC/1500V(TUV)
Rated Current: 15A or higher
surge protection
Mounting Structure
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system
Our Advantages
WHY CHOOSE US?
Exhibitions
Canton Fair
Canton Fair
Finland Expo
InterSolar Europe
InterSolar Europe
InterSolar South America
Poland Expo
Shanghai SNEC
Project case
successful cases
Choose the plan that suits you best.
Austrian Park Project
German residential projects
Vietnam residential project
Italian residential projects
FAQ
Are you a factory or a trader?
+
-
We are a manufacturer of solar panel, and we can also provide solutions for complete solar systems.
Do I need batteries?
+
-
No! It uses the grid for balance-cheaper setup, but no power during outages.
Can you provide samples? When can we expect delivery?
+
-
Yes, sample orders will be delivered within 3-5 days, and bulk orders are typically 15-25 days depending on quantity.
