Products Description
The 10kW Three-Phase Solar Energy Storage Hybrid System is an advanced commercial solution that combines high-output solar generation with robust battery storage for reliable, grid-interactive power. Featuring efficient 10kW monocrystalline panels, a three-phase hybrid inverter with MPPT optimization, and scalable lithium-ion batteries (20-40kWh capacity), it generates clean energy, stores surplus for peak demand, and seamlessly switches between solar, battery, and grid modes. Ideal for offices or small businesses, this system cuts electricity costs by up to 60%, ensures uninterrupted supply during outages, and minimizes carbon emissions-empowering sustainable operations with smart monitoring via app or cloud.

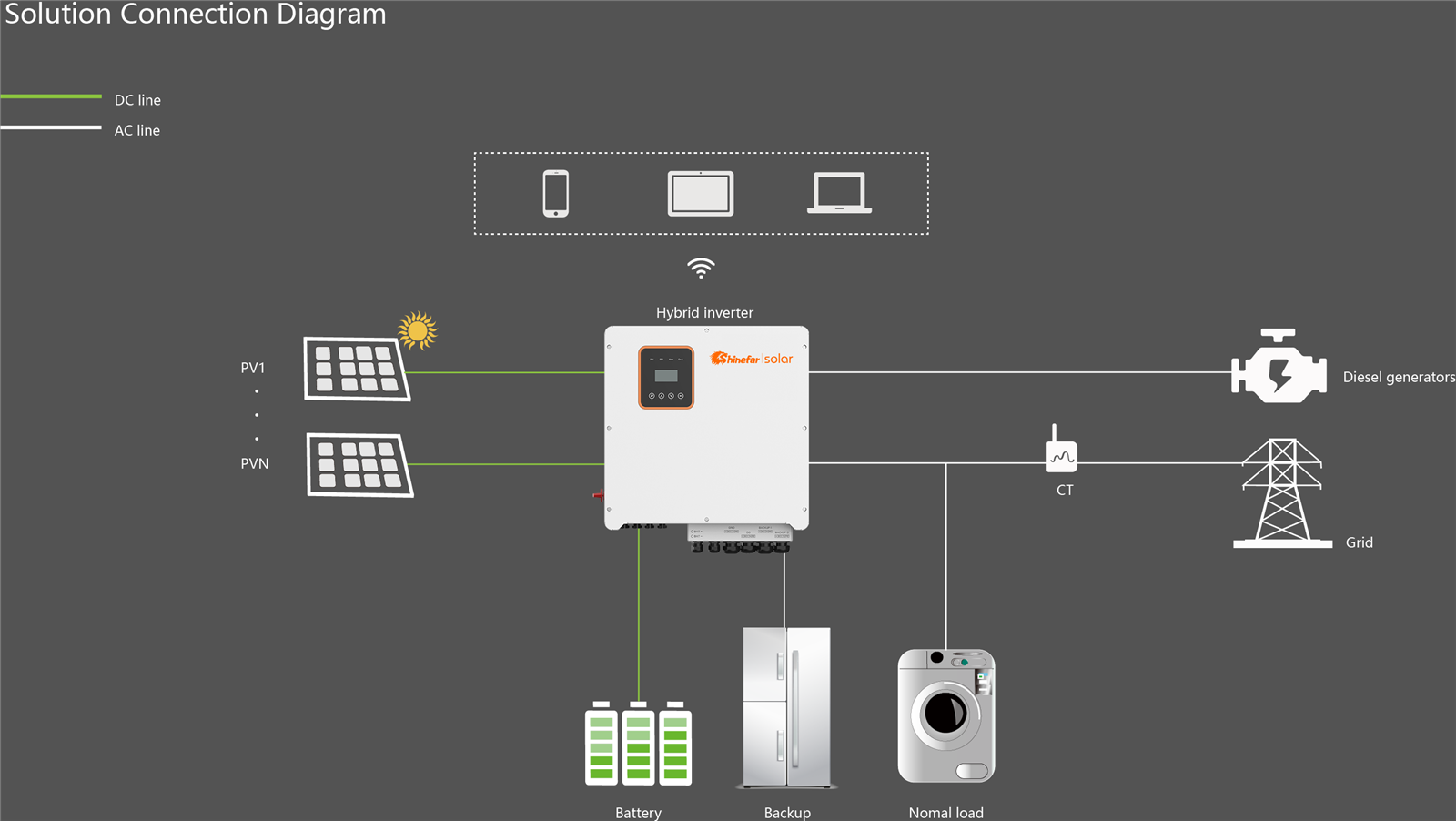

System Block Diagram

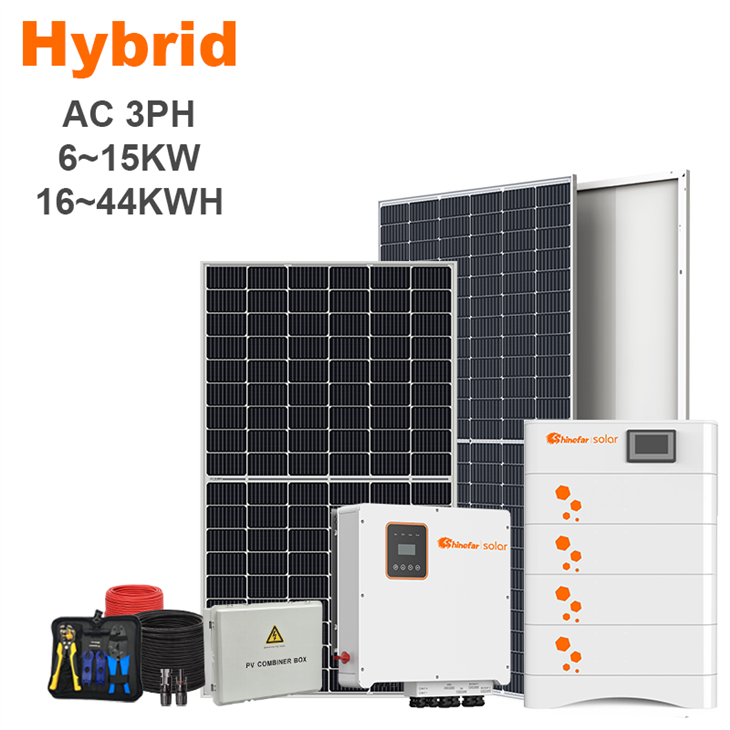

System Overview
Model info
Model NO
SF10K-Hybrid-3PH-HV
Rated Power
10KW
Output
AC380/400V, 3W+N+PE, 50/60Hz
Certification
CE/TUV
Hybrid Inverter
Tier-1 3 Phase Inverter
PV module
Shinefar Solar N-type high efficiency PV module
Battery
High voltage LifePO4
Mounting Structure
Roof/Ground Customized
System Configuration
| Model | SF6K-Hybrid-3PH-HV | SF8K-Hybrid-3PH-HV | SF10K-Hybrid-3PH-HV |
| PV module 580W | 11 pcs | 14 pcs |
18 pcs |
| Hybrid Inverter | R6KH3 | R8KH3 | R10KH3 |
| Wi-Fi Module |
|
|
|
| Mounting System | 1 set | 1 set | 1 set |
| PV cable 4mm² | 100M | 150M | 200M |
| PV connector | 15 kit | 20 kit |
25 kit |
| PV combine box | 1 set | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | |||
| Model | SF12K-Hybrid-3PH-HV | SF15K-Hybrid-3PH-HV |
| PV module 580W | 21 pcs | 26 pcs |
| Hybrid Inverter | R12KH3 | R15KH3 |
| Wi-Fi Module |
|
|
| Mounting System | 1 set | 1 set |
| PV cable 4mm² | 250M | 300M |
| PV connector | 30 kit | 35 kit |
| PV combine box | 1 set | 1 set |
| PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt) | ||
System Components
Shinefar Solar PV module
Technology: Utilizing MBB half cell N-type TOPCon
Pmax: 580W
Vmp: 42.91V
Imp: 13.52A
Voc: 50.80V
Isc: 14.55A
Dimensions: 2278×1134×30mm Weight: 26.5kg
Shinefar 3Ph Hybrid Inverter
Support BMS (RS485) remote upgrade.
Support full power discharge, automatic batterycharge and discharge management.
Compatible with single-phase and three-phase loads.
supporting 100% unbalanced loads.
Shinefar Solar Lithium Battery
1. Compact size saves space
2. Easy installation, adaptable to any mounting angle
3. Excellent compatibility, compatible with all major switching power supplies and UPSs
4. The BMS can withstand high inrush currents, increasing system reliability
5. Electrical storage cells provide a longer lifespan
6. Supports parallel operation of multiple units
Shinefar Solar PV Combine Box
Cross Section: 4mm², 6mm² Optional
Rated Voltage: DC500V/1000VDC/1500V(TUV)
Rated Current: 15A or higher
surge protection
Mounting Structure
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system
Our Advantages
WHY CHOOSE US?
Project case
successful cases
Choose the plan that suits you best.
Austrian Park Project
German residential projects
Vietnam residential project
Italian residential projects
Certificates
Global certifications
FAQ
Can you provide samples? When can we expect delivery?
+
-
Yes, sample orders will be delivered within 3-5 days, and bulk orders are typically 15-25 days depending on quantity.
Which type of solar system should I choose?
+
-
Choose a grid-connected system for cost-effectiveness and grid reliability, a hybrid grid-connected/off-grid system for flexibility and backup power, or an off-grid system for complete energy independence, taking into account your energy needs, budget, and location.
What certifications do you have?
+
-
Our products have TUV, IEC, CE, ISO, INMETRO, UL, and other relevant certifications.
