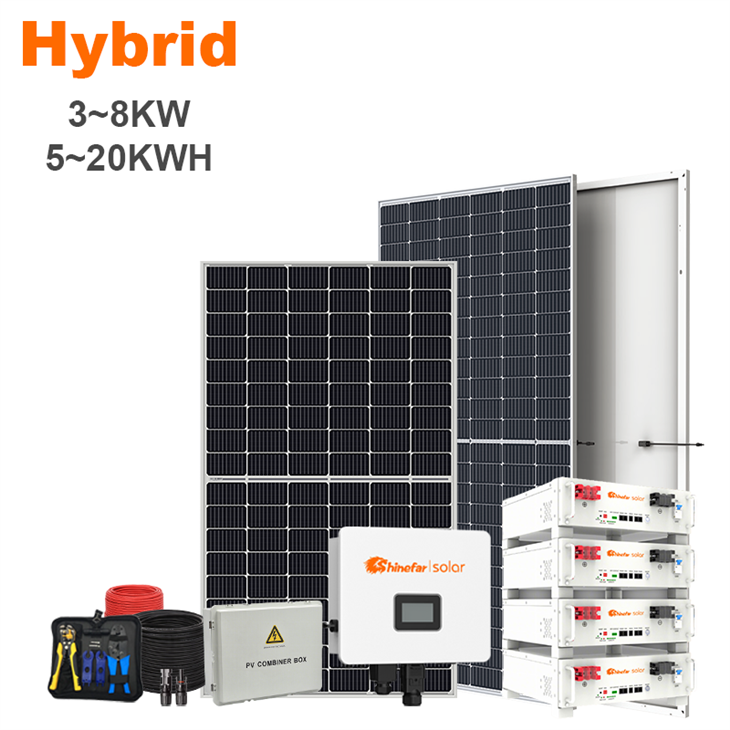

Name: China Cheap 5KW Hybrid Solar Power System Manufacturers Suppliers Factory - Custom Service
Brand: SHINEFAR
SKU: 282744636

A 5kW hybrid photovoltaic (PV) system is a versatile residential solar energy setup that integrates solar panels with battery storage and grid connectivity, allowing it to operate in on-grid, off-grid, or hybrid modes for reliable power supply. Typically comprising 8-10 high-efficiency solar panels (around 400-500W each), a hybrid inverter, mounting structures, wiring, a monitoring system, and a 5-10kWh battery bank, it generates approximately 20kWh of electricity per day under optimal conditions, sufficient for a household of 4-5 people. This system enhances energy independence by storing excess solar power for nighttime or outages while enabling surplus export to the grid, reducing electricity bills and promoting sustainability.

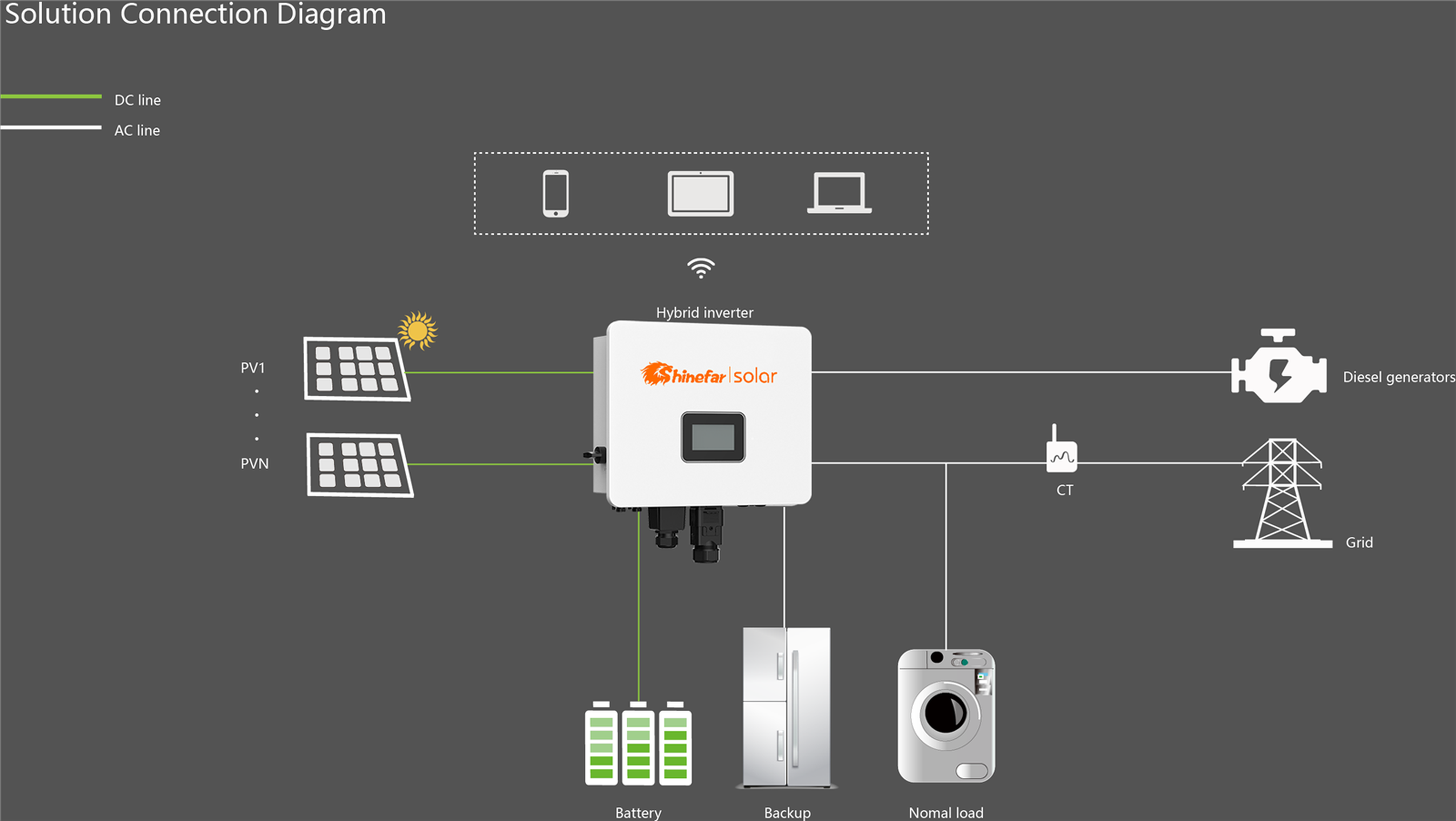

System Block Diagram

System Block Diagram

System Overview
Model NO.: SF5K-Hybrid
Rated Power: 5KW
Output: AC230V50/60Hz
Certificate: CE/TUV
Hybrid Inverter: Tier-1 brand Inverter
PV module: Shinefar Solar N-type high efficiency PV module
Battery: High quality LifePo4 cells inside
Mounting Structure: Roof/Ground Customized

System Configuration

Model	SF-3K-Hybrid	SF-5K-Hybrid	SF-8K-Hybrid
PV module 580W	6pcs	9pcs	14pcs
Hybrid Inverter	R3KL1-G2	R5KL1-G2	R8KL1-G2
Wi-Fi Module	Yes	Yes	Yes
Mounting System	1 set	1 set	1 set
DC cable 4mm²	50M	100M	150M
PV connector	10 kit	15 kit	20 kit
PV combine box	1 set	1 set	1 set
PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt)

System Components

	Shinefar Solar PV module
	Technology: Utilizing MBB half-cell N-type TOPCon Pmax: 580W \| Vmp: 42.91V \| Imp: 13.52A \| Voc: 50.80V \| Isc: 14.55A Dimensions: 2278×1134×30mm, Weight: 26.5kg

	Shinefar Hybrid Inverter
	Using soft switching technology, the overall machine efficiency is increased by 0.5%. Support AC coupling function. Support mobile phone (Bluetooth +WlFl) setting and maintenance. Compact design Save 50% on installation costs. Ultra-low starting voltage, longer power generation time.

Solar Lithium Battery

Shinefar Solar Lithium Battery

Safer|Reliable|Flexble|Convenient|Eco-Friendly
Battery Chemistry: LiFePO4
Capacity (Ah): 100
Scalability: Max 64
Nominal Voltage (V): 51.2
Operating Voltage(V): 43.2~57.6
Nominal Energy (kWh): 5.12
Charge/DischargeCurrent(A):

Recommend: 50

Max.: 100

Peak(2mins,25℃): 120

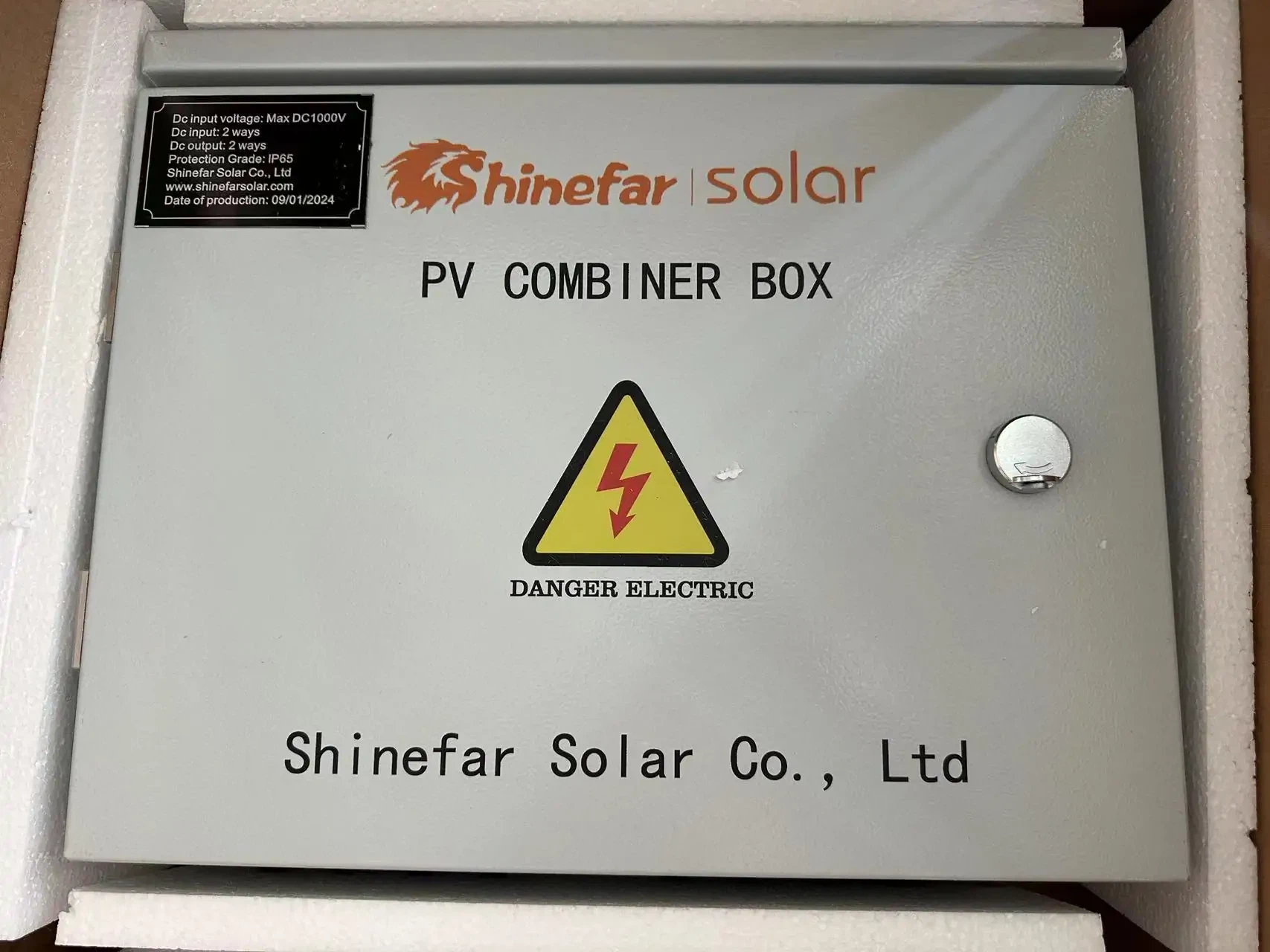

Solar PV Combine Box

Shinefar Solar PV Combine Box

Cross Section: 4mm², 6mm² Optional
Rated Voltage: DC500V/1000VDC/1500V(TUV)
Rated Current: 15A or higher
surge protection

	Mounting Structure
	Residential Roof(Pitched Roof) Commercial Roof(Flat roof&workshop roof) Ground Solar Mounting system Vertical wall solar mounting system All aluminum structure solar mounting system Car parking solar mounting system

Why Choose Us

Hybrid Solar Power System Manufacturer

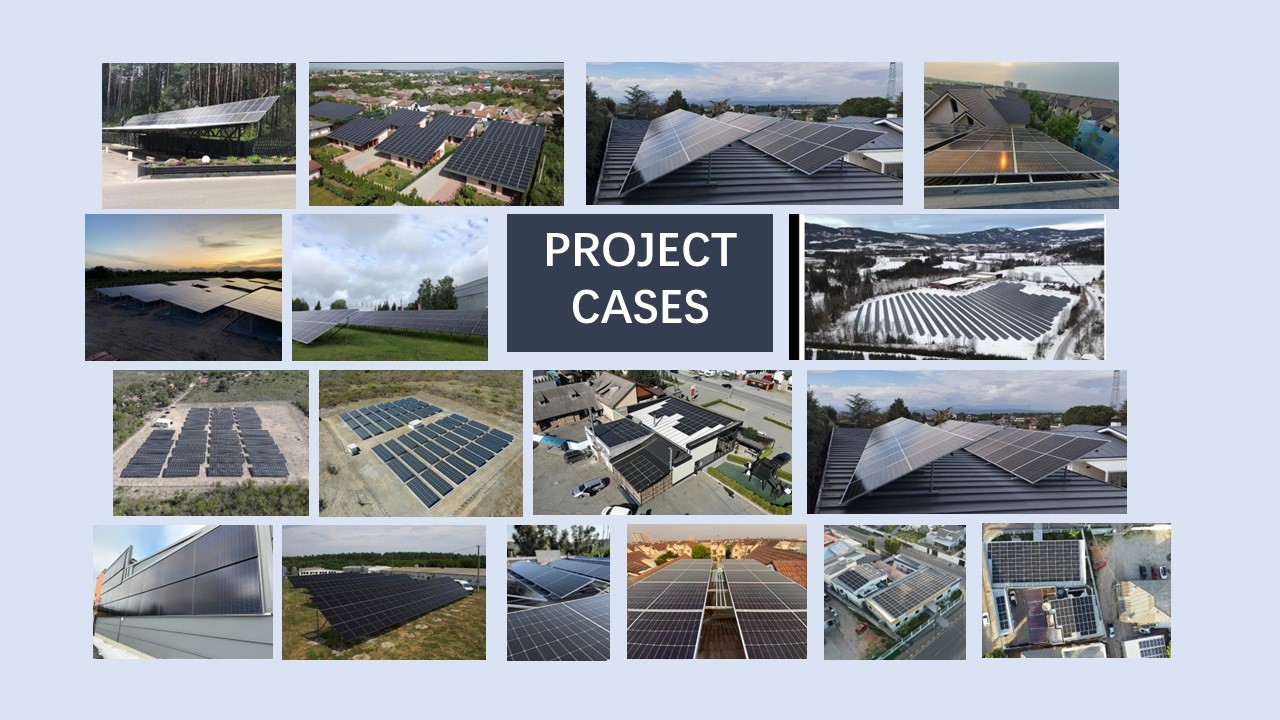

Project

Hybrid Solar Power System Project

FAQ

Q1: Are you a factory or a trader?

A: We are a manufacturer of solar panel, and we can also provide solutions for complete solar systems.

Q2: Why should I choose your products?

A: 1. Our team has over 10 years of experience in the PV industry.

2. We support OEM & ODM services.

3. We have a professional sales team, R&D team, and sincere service.

Q3: What is the warranty period?

A: Solar panels - 30 years, inverters - 5 years, lithium batteries - 5 years
