315(W)
Component power
19.40<%>
Component efficiency
15(year)
Product quality assurance
25(year)
Efficiency warranty
Core Advantages
Smart Soldering
Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.
Smart Module Packaging and Logistics
Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.
Half-Cell Modules
The power of half-cell module increases, and the hot spot temperature reduces because of lower working current.
Multi-busbar Design
Our multi-busbar design further improves current collection capabilities.
Power Warranty
1st year degradation ≤2.0%, linear degradation ≤0.45%/year
Electrically Compatible
Lower Operating current,Good for distributed generation applications; Matches with various inverters and optimizers; Avoids wiring loss.
Bifacial Energy Yield
Additional power generation from the backside of bifacial modules increases the overall energy yield, which has been verified by customers and third-party testing organizations.
TOPCON Cells
TOPCon technology,higher power, overcomes LID and PID degradation.
Mechanical Parameters

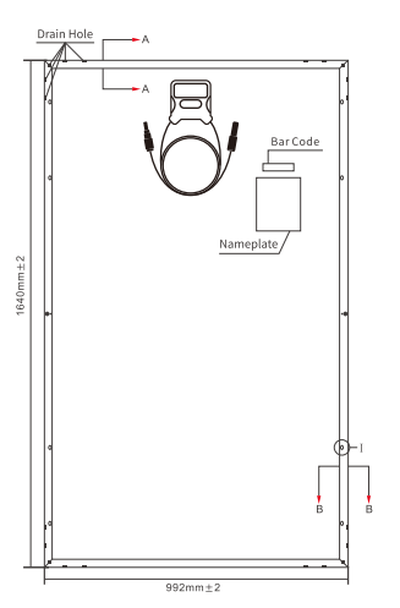

Dimensions of Module
1640x992x35mm
Weight
17kg
Packing
31pcs/Pallet,980pcs/40hq
Glass
High transparency solar glass 3.2mm
Backsheet
White
Frame
Anodized Aluminum Alloy & Custom Color Accepted
J-Box
IP67 Rated
Cable
4.0mm2, 300mm
Bypass Diodes
3pcs
Wind/ Snow Load
2400Pa/5400Pa
Connector
MC4 Compatible
Electrical Performance Parameters (STC Test)
| Module Type | SF-M15/60300 | SF-M15/60305 | SF-M15/60310 | SF-M15/60315 |
|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 300 | 305 | 310 | 315 |
| Maximum Power Voltage (Vmp)[M] | 32.40 | 32.60 | 32.80 | 33.00 |
| Maximum Power Current (lmp) [A] | 9.26 | 9.36 | 9.46 | 9.55 |
| Open Circuit Voltage (Voc)[M] | 39.50 | 39.70 | 39.90 | 40.10 |
| Short Circuit Current (Isc)[A] |
9.78 |
9.87 | 9.96 | 10.04 |
| Module Eficiency[%] | 18.40 | 18.70 | 19.10 | 19.40 |
| Celli Type[mm] | Mono 156.75x156.75,60 cells | |||
| Operational Temperature['C] | -40~+85°C | |||
| Maximum System Voltage | 1500V DC | |||
| Max Series Fuse Rating | 15A | |||
Electrical Performance Parameters (NOTC Test)
| Module Type | SF-M15/60300 | SF-M15/60305 | SF-M15/60310 | SF-M15/60315 |
|---|---|---|---|---|
| Maximum Power (Pmax) [W] |
222.6 |
222.5 | 230.43 | 233.78 |
| Maximum Power Voltage (Vmp)[M] | 30.00 | 30.20 | 30.40 | 30.60 |
| Maximum Power Current (lmp) [A] | 7.42 | 7.50 | 7.58 | 7.64 |
| Open Circuit Voltage (Voc)[M] | 36.60 | 36.80 | 37.00 | 37.20 |
| Short Circuit Current (Isc)[A] | 7.91 | 7.98 | 8.05 | 8.12 |
| Module Eficiency[%] | 18.40 | 18.70 | 19.10 | 19.40 |
| Celli Type[mm] | Mono 156.75x156.75,60 cells | |||
| Operational Temperature['C] | -40~+85°C | |||
| Maximum System Voltage | 1500V DC | |||
| Max Series Fuse Rating | 15A | |||
Load Capacity
Frontal maximum static load (e.g., snow, wind)
5400Pa
Maximum static load on back (e.g. wind)
2400Pa
Pass the hail test
Diameter 25mm, impact speed 23m/s
Temperature Coefficient (STC test)
Temperature Coefficient of Isc
+0.06%/°C
Temperature Cofficient of Voc
﹣0.30%/°C
Temperature Coefficient of Pmax
﹣0.39%/°C
